Vacuum storage bags do not rely only on film thickness or the valve to maintain vacuum. A reliable airtight system normally depends on the zipper closure, slider alignment, zipper channel design, perimeter heat sealing, valve sealing and production consistency working together.
Many buyers compare PA+PE thickness but overlook how the closure and permanent seals are controlled. Importers, wholesalers and brands should determine whether the complete bag can be closed consistently and checked against an approved specification before mass production.
How the Sealing System of a Vacuum Storage Bag Works
A vacuum storage bag uses several sealing nodes. The bag film contains the product, the zipper closes the reusable opening, the slider helps the user engage the zipper tracks, the valve provides the evacuation path, and the perimeter heat seals permanently join the converted film edges.
- Bag film
- Zipper closure
- Slider
- Valve
- Perimeter heat seal
Air can enter through any node if the component, assembly or operating method is unsuitable. Airtight performance is therefore a system, not a single component. The film and sealing process should be reviewed together; buyers comparing structures can use the PA+PE vacuum storage bag materials guide to document material questions without treating thickness as the only performance factor.
For the longer-term performance factors behind gradual reinflation, review the vacuum-retention buyer guide.
Single Zipper vs Double Zipper Vacuum Storage Bags
| Criteria | Single Zipper | Double Zipper |
|---|---|---|
| Sealing redundancy | One interlocking track provides the reusable closure. | Two tracks provide two closure interfaces when both are fully engaged. |
| Ease of closing | Can be straightforward when the profile and slider are well matched. | Requires both tracks to align and close from end to end. |
| Alignment tolerance | One track must engage consistently without distortion. | Track spacing and alignment must remain consistent across the opening. |
| Repeated use | Depends on profile quality, handling and the intended reuse requirement. | Also depends on profile consistency, slider fit and correct user operation. |
| Sourcing consideration | Evaluate the finished bag and approved use, not the track count alone. | Confirm that both tracks close smoothly in representative production samples. |
A double zipper vacuum bag may provide additional sealing redundancy, but it is not leak-proof by design alone. Profile consistency, attachment, slider fit, heat sealing and production control all affect the finished result.

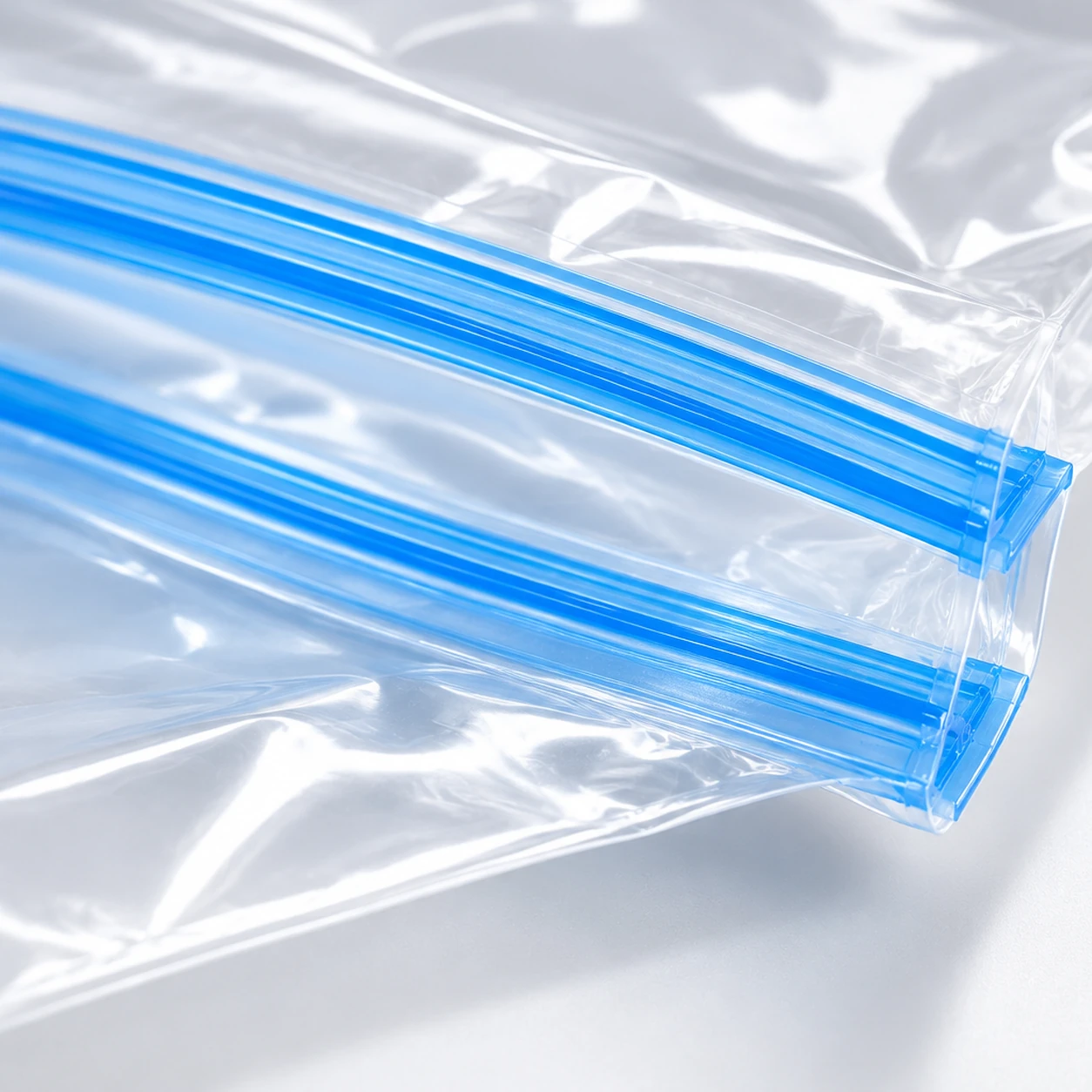

What Is a Double Zipper System?
A double zipper system uses two interlocking seal tracks across the bag opening. When both tracks are aligned and fully engaged, the arrangement may improve sealing reliability by providing a second closure interface. The benefit depends on consistent track geometry and correct closing rather than the phrase “double zipper” on a specification sheet.
The profile should remain even along the opening. Distorted sections, inconsistent spacing or damage near the ends can make closure difficult. The slider should match the zipper profile and apply pressure in a way that closes both tracks without cutting, stretching or deforming the film around them.
Buyer Tip: Before approving bulk production, test several bags from different samples or production batches rather than checking only one finished bag. Use representative contents and the intended evacuation method, and document whether both tracks close consistently after repeated opening and closing.
What Does the Slider Do?
The slider helps apply even pressure while the user moves from one end of the opening to the other. A suitable slider can reduce incomplete closure by guiding the zipper tracks into engagement, particularly on wide bags where finger pressure may be uneven.
The slider itself does not create vacuum. Its purpose is to help the user close the zipper correctly. Its internal shape and clearance should match the selected zipper profile. A loose slider may fail to apply sufficient pressure, while an unsuitable tight fit may be difficult to move or may stress the closure area.
Zipper Seal vs Perimeter Heat Seal
The zipper seal is the reusable opening that the customer closes after placing clothing or bedding inside. It is designed to open and close during normal use. The perimeter heat seal is created during manufacturing to join the bag edges permanently.
Depending on the bag design, permanent seals may include a bottom seal, side seals or a wider perimeter seal around converted edges. Their width and appearance should follow the approved construction. Wrinkles, contamination, incomplete bonding or stress where components meet the film can become potential leakage points.
Even when the vacuum bag zipper seal is completely closed, unstable heat sealing can allow gradual air entry. Buyers should therefore inspect the reusable closure and the permanent edges as separate parts of one vacuum bag sealing system.
Common Vacuum Bag Leakage Points
1. Incomplete Zipper Closure
Problem: The bag expands because part of the opening was not fully engaged. Possible cause: The slider stopped early, skipped a section or was used in the wrong direction. Buyer inspection: Check closure from end to end on filled bags and verify that operating instructions match the actual zipper and slider.
2. Zipper Contamination, Dust or Fibers
Problem: A small channel remains between the interlocking surfaces. Possible cause: Clothing fibers, dust or packaging debris entered the closure. Buyer inspection: Review cleanliness during packing and test whether representative users can identify and clear contamination before closing.
3. Misaligned Zipper Tracks
Problem: The closure feels engaged in one area but separates elsewhere. Possible cause: Track spacing, attachment or film distortion is inconsistent. Buyer inspection: Compare alignment across several samples, especially near both ends and around folded areas.
4. Damaged Zipper Profile
Problem: The zipper will not close smoothly or reopens after pressure is applied. Possible cause: The profile was deformed during converting, folding, packing or handling. Buyer inspection: Look for crushed, stretched or cut sections and repeat the open-close sequence required by the specification.
5. Weak Perimeter Heat Sealing
Problem: Air enters even though the reusable closure appears complete. Possible cause: An irregular permanent seal, wrinkle, contamination or local stress creates a weak path. Buyer inspection: Compare seal appearance and width with the approved sample and include agreed finished-bag checks in production inspection.
6. Valve or Valve-to-Film Sealing Issue
Problem: Leakage originates around the evacuation component rather than the zipper. Possible cause: Component fit, assembly, cap position, film attachment or pump compatibility is unsuitable. Buyer inspection: Confirm the complete valve assembly and intended evacuation method. The vacuum storage bag valve types guide explains component-selection questions in more detail.
This section identifies where leakage may originate; it is not a substitute for a defined test procedure. For sample selection, observation conditions and acceptance planning, use the separate guide to vacuum storage bag leak testing.

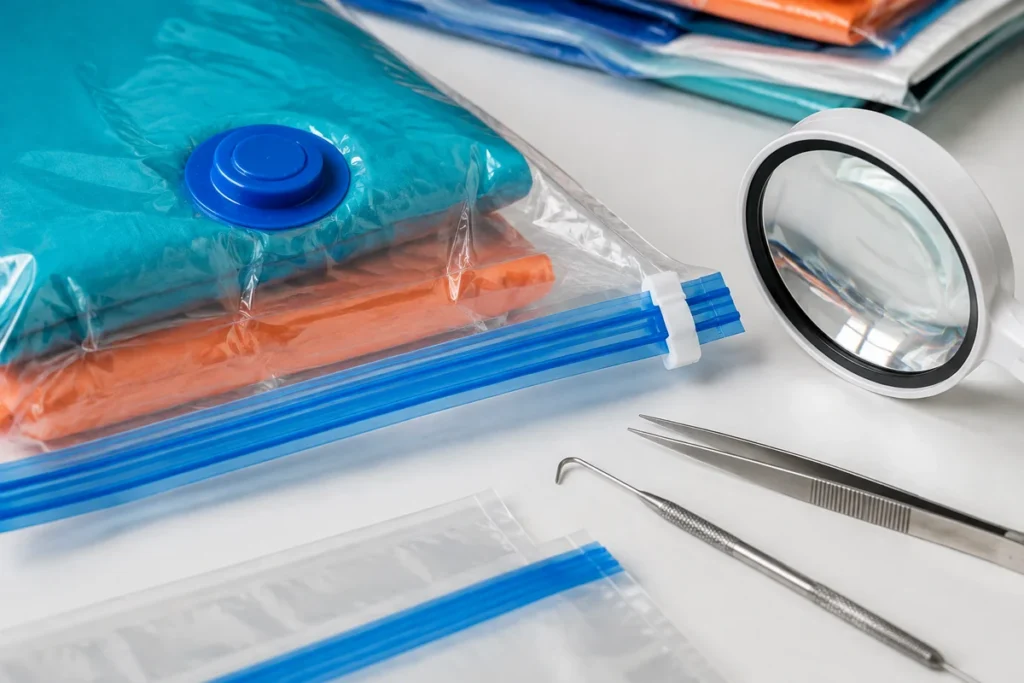

Vacuum Bag Zipper & Seal QC Checklist
- □ Zipper closes smoothly from end to end.
- □ Both zipper tracks align correctly.
- □ Slider moves consistently and matches the zipper profile.
- □ No deformation appears around the zipper area.
- □ Heat-seal width and appearance are consistent with the approved sample.
- □ No wrinkles cross critical seal areas.
- □ Valve-to-film sealing is secure and visually consistent.
- □ Filled bags pass the buyer-specified vacuum-retention test.
- □ Samples are checked after repeated opening and closing.
- □ Production samples match the approved pre-production sample.
Connect the checklist to the purchase specification and inspection plan. Define which SKUs are checked and how samples are selected. The vacuum storage bag manufacturer page provides production and quality-control context, while project acceptance criteria still require confirmation.
Zipper and Seal Options for OEM Projects
OEM buyers should confirm dimensions, film structure, thickness, zipper, valve, slider, printing, packaging and tests as one coordinated specification. Bag width affects zipper length, artwork needs clearance from seals, and a pump requirement may affect the valve and packed set.
These component decisions fit into the wider OEM manufacturing workflow from specification approval through production and QC.
For custom vacuum storage bags, the zipper, valve, film and heat-sealing process should be evaluated as one complete system. Buyers should approve a traceable sample or pre-production reference before mass production and identify any buyer-specified tests, repeated-use checks and packaging conditions in the order documentation.
A clear request should separate confirmed requirements from open questions. ClearNest Pack can be considered as an OEM vacuum storage bag supplier when buyers are ready to discuss the complete product brief, rather than choosing a closure component without the rest of the bag specification.
Frequently Asked Questions
Are double zipper vacuum storage bags better than single zipper bags?
A double zipper can provide two closure interfaces, but track count alone does not determine finished performance. Buyers should compare profile consistency, alignment, slider fit, film attachment, permanent seals and the complete loaded bag. A suitable single zipper may perform consistently for its approved specification, while a poorly aligned double zipper can still be difficult to close.
Why does my vacuum storage bag leak from the zipper?
A vacuum bag leaking from the zipper may have an incomplete closure, contamination between the tracks, misalignment, profile damage or deformation near the opening. Confirm that the bag was closed using the intended slider and procedure. Then inspect the valve, film and perimeter seals as well, because expansion does not prove that the zipper is the only leakage point.
Can a vacuum bag zipper be opened and reused?
Vacuum storage bag closures are generally intended to be opened and closed, but the required reuse condition should be confirmed for the selected product. Buyers should evaluate representative samples after repeated operation and normal filling. Check whether the profile, slider and film attachment remain consistent rather than promising an unsupported number of use cycles.
What is the difference between a zipper seal and a heat seal?
The zipper seal is the reusable closure operated by the customer. A heat seal is a permanent manufactured joint along the bottom, sides or perimeter of the bag. Both contribute to airtight performance. A fully closed zipper cannot compensate for an unstable permanent seal, and a sound perimeter seal cannot compensate for an open zipper.
Does a thicker vacuum bag prevent zipper leakage?
No single thickness value guarantees zipper performance. Film structure and thickness can affect handling and strength, but zipper profile, alignment, attachment, slider operation, contamination and correct closing also matter. Buyers should define the thickness basis and evaluate the complete finished bag under agreed conditions instead of treating thickness as a stand-alone leakage guarantee.
What should wholesale buyers check before approving vacuum storage bags?
Confirm dimensions, film structure, thickness basis, zipper and slider configuration, valve, permanent seals, printing, packaging and the intended evacuation method. Review production-representative samples, define the vacuum-retention procedure and acceptance criteria, and ensure the approved sample, purchase specification and inspection checklist describe the same finished SKU.
